API Spec 15HR is the most widely applied high-pressure non-metallic pipe standard in the oil & gas industry. Since its 4th Edition release in February 2016, it has served as the cornerstone for GRP line pipe design, manufacturing, and inspection worldwide. This article provides a chapter-by-chapter technical analysis based on the specification text.
1. Scope
Spec 15HR governs a precisely defined product category: rigid pipe assemblies manufactured from thermosetting resins reinforced with glass fibers, with pressure ratings from 3.45 MPa (500 psi) to 34.5 MPa (5,000 psi).
Three critical exclusions:
- Thermoplastic resins — these fall under 15LE and 15PX
- Low-pressure GRP pipe — under 15LR
- Non-mechanical joints (adhesive bonding excluded)
2. Materials
The specification limits the material system to:
Resin matrix: Epoxy, polyester, vinyl ester, and phenolic — four thermoset systems. Alternative resins and reinforcements may be considered “if proven suitable for the intended service.”
Reinforcement: Glass fiber. All liner layers must also be composed of thermosetting resin.
The underlying logic: the cross-linked network of thermosets maintains structural integrity at elevated temperature and pressure, while thermoplastics would experience creep and stress relaxation under equivalent conditions.
3. Connection Technology: 8RD Thread System
The connection is the weakest link in any non-metallic pipe system. Spec 15HR’s solution is the 8RD tapered self-sealing thread, referenced to API Spec 5B 15th Edition.
Key requirements:
- Manufacturers must possess master gauges calibrated to API standards and working gauges for production
- Thread measurement procedures per API RP 5B1
- Master gauges are restricted to working gauge calibration and dispute resolution only
- Alternate connections permitted when marked “15HR” and “A.C.”
Diameter range: 2⅜” through 10” (254 mm) in the 8RD thread series.
4. Manufacturing Processes
Three approved manufacturing methods:
- Filament winding (pipe body)
- Centrifugal casting (pipe body)
- Compression molding, filament winding, or resin transfer molding (fittings)
5. Quality Control: Four Lines of Defense
Spec 15HR establishes a four-tier verification system:
5.1 Factory Hydrostatic Testing (100% inspection)
Every pipe and component, after full cure, must be hydrostatically tested at 1.5 times the standard pressure rating. Standard test holds for 2 minutes. Every 50th connection requires an additional 10-minute hold. Acceptance criterion: no visible leakage or dripping.
5.2 Glass Transition Temperature (Tg)
Determined by DSC per Appendix F. For each winding machine, Tg must be measured whenever the resin system changes. Fittings are tested at a frequency of 1 per 100 pieces. Measured Tg shall not be more than 5°C below the baseline value.
5.3 Short-Term Failure Pressure
Per ASTM D1599 free-end method. Specimen includes a complete connection. Failure pressure must exceed published value and not fall below 85% of the minimum failure pressure. Batch definition: 1,524 meters of pipe or 100 fittings per batch, minimum one test per batch.
5.4 Visual Inspection and Retesting
Per Table 4 criteria. Retest rule: initial failure → two additional specimens → if both pass, batch accepted (excluding initial failed specimen) → if either fails, batch rejected → 100% piece-by-piece testing permitted.
6. Dimensional and Thread Measurement

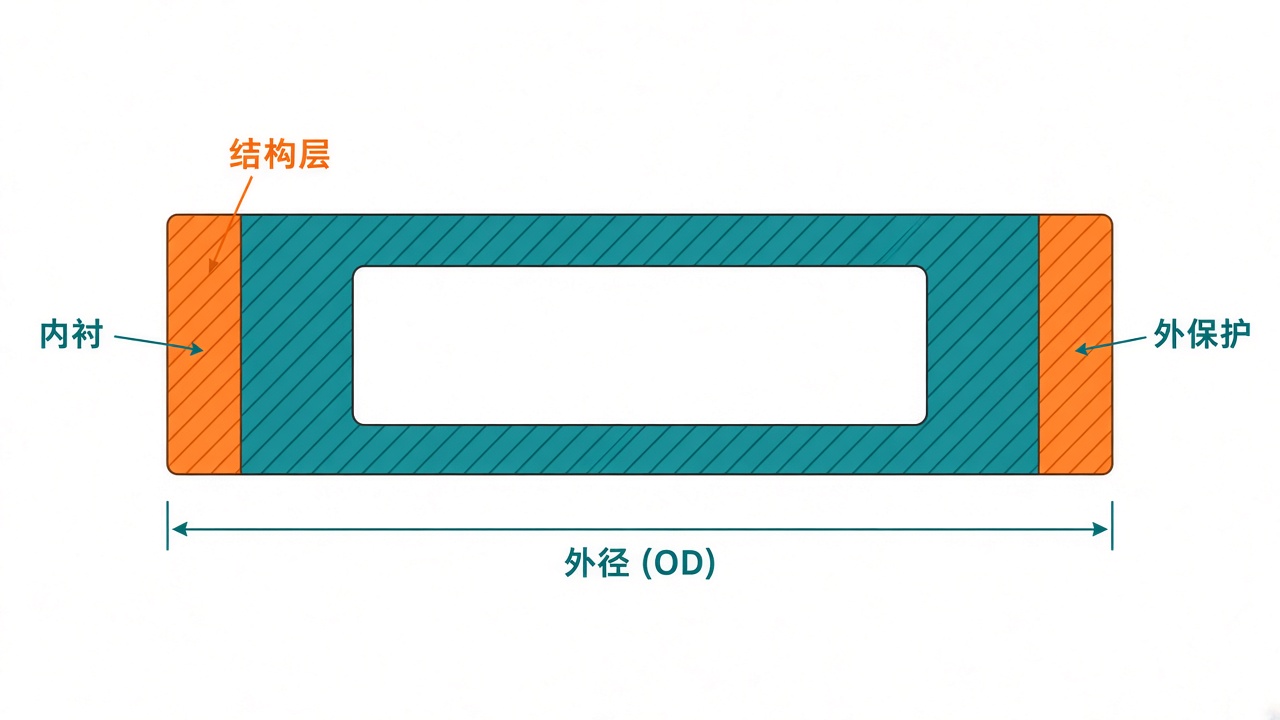

Wall thickness calculated from measured OD and ID. Reinforcement layer thickness determined per ASTM D3567 once per batch. Threads measured per API 5B1, minimum frequency once per batch.
7. Marking Requirements
Each pipe must be marked 1 to 3 feet from the female thread end with:
- Manufacturer name or trademark
- “15HR” (plus “A.C.” for alternate connections)
- Nominal size
- Unique serial number
- API 15HR pressure rating
- Date of manufacture
- Standard temperature rating: 150°F (65°C)
- Purchaser-specified additional information
Markings must remain legible for three years in storage.
8. Handling and Field Testing
Thread protectors must cover all exposed thread ends. Protector material must be plastic and must not damage threads at service temperatures (-45.6°C to 65.6°C).
Recommended field pressure test: 1.25 × maximum system design pressure (per ASME B31.4), not exceeding 1.25 × API 15HR standard pressure rating. This limit prevents overstressing beyond what was already applied during factory hydrostatic testing.
9. Published Data Requirements
Manufacturers must publish the following performance data:
- Maximum rated temperature
- Long-term hydrostatic strength (LTHS) with lower confidence limit
- Axial thermal expansion coefficient (0°C to maximum rated temperature)
- Hoop tensile modulus (at 23°C and at maximum rated temperature)
- Poisson’s ratio
- Axial tensile load and hoop shrinkage
- Short-term joint failure pressure (at 23°C and at maximum rated temperature)
10. Key Takeaways
- Spec 15HR is a complete manufacturing + inspection + marking + handling standard
- Four quality control defenses form a rigorous verification system
- The 8RD thread gauge system is the critical safeguard for connection reliability
- Batch definitions drive inspection frequency: 1,524 m/pipe batch, 100 pcs/fitting batch
- The 1.25× field test pressure ceiling carries important safety implications
Author: Simon Su | Composite Pipe Inspection | LEISA.COM | info@leisa.com
References: API Spec 15HR 4th Ed. (2016), API Spec 5B 15th Ed., API RP 5B1, API RP 15TL4, ASTM D1599/D2105/D2992/D3567
